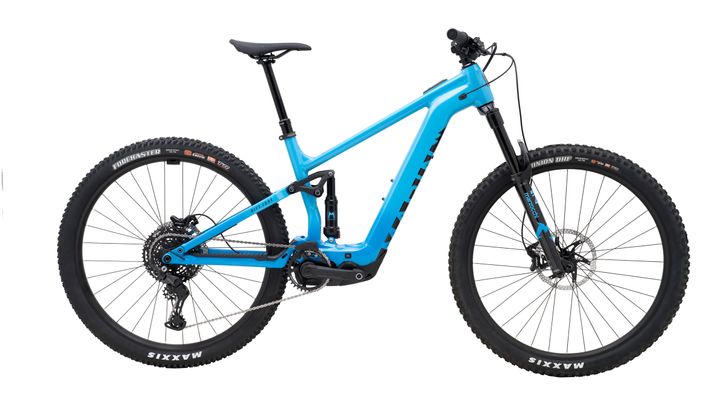

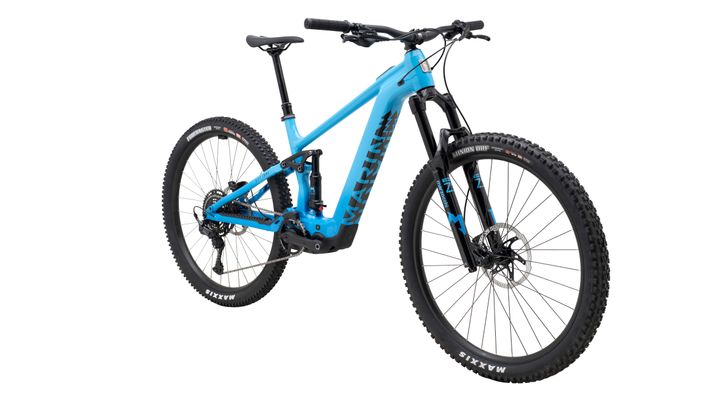

Marin Rift Zone EL 1

DEMO BIKE AVAILABLE

The all-new Rift Zone EL ("Electric Light") trail eMTBs take everything you love about the Rift Zone and repurposes it into bikes that share the capability of the full-powered versions but in lighter packages.

Made possible in part by Bosch's new lightweight Performance Line SX drive unit and CompactTube internal battery, the Rift Zone EL models deliver a decidedly playful ride with a power delivery so natural you might forget its an ebike. With all the benefits without the bulk, the Rift Zone EL is the perfect platform for those who don't require the full range and power output of more traditional eMTBs.

The Rift Zone EL1 is smartly spec'd with air-sprung Marzozzchi Bomber suspension, Shimano's stout and smooth-shifting CUES 10-speed drivetrain and powerful TRP Slate EVO 4-piston disc brakes.

Specifications

• Frame

  All New Series 4 Alloy Lightweight E, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle

• Front Suspension

  Marzocchi Bomber Z1 150mm Travel, 29, 110x15 Kabolt Thru Axle, 44mm Offset

• Rear Suspension

  Marzocchi Bomber Air Inline, Custom Tune, 210x55mm, 25xM8 Upper & Lower Mount

• Rim

  Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible

• Hub Rear

  Shimano FHTC500, 148x12 Thru Axle, Microspline, 32H, Centerlock

• Hub Front

  Shimano HB-TC500, 110x10 Thru Axle, 32H, Centerlock

• Spokes

  14g Black Stainless Steel

• Tires

  Front: Maxxis Minion DHF, 29x2.4" MAXXGRIP, Tubeless ready, EXO+, Rear: Maxxis Forecaster 29x2.4", Tubeless Ready MAXX TERRA EXO+

• Derailleur Rear

  Shimano CUES RD-U6000 GS, 10-Speed

• Derailleur Front

  -

• Shift Lever

  Shimano CUES SL-U6000-10R, 10-Speed

• Crankset

  e*thirteen e*spec Plus, 160mm Length, 34T

• Motor

  Bosch Performance Line SX, 600W, 55Nm torque

• Chain

  Shimano LG500

• Cassette

  Shimano CS-LG300-10, 11-48T

• Brakes Front

  TRP Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor

• Brakes Rear

  TRP Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor

• Brake Levers

  TRP Slate EVO Hydraulic Lever, I-Spec EV Compatible

• Handlebar

  Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

• Stem

  Marin 3D Forged Alloy, 35mm

• Grips

  Marin Grizzly Lock On

• Headset

  FSA Custom, Adjustable HTA Design

• Seatpost

  TranzX, YSI34 QL, Plastic 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 34.9mm

• Saddle

  Marin Speed Concept

• Pedals

  Marin MTB Plastic

• Battery

  Bosch CompactTube 400Wh Internal

• Display

  Bosch BRC3100 Systems Controller

• Switch

  Bosch BRC3300 Bluetooth Remote 22.2mm Clamp

• Extras

  e*thirteen e*Spec Chainguide

• Extras

  Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head, Bosch EB12.110.016; 2A Charger

• Range, Charging Time

  15-55 miles (Based on Rider Weight, Terrain, Climate and Level of Assist Used), 6 Hours (estimated, under ideal conditions)
